The Preclinical and Clinical Applications of Mesenchymal Stem Cells in Stroke
Li Liu1, Ziyang Lin2, Junzheng Yang2*
1Henan Vocational College of Applied Technology, Zhengzhou, 450042, China.
2Guangdong Nephrotic Drug Engineering Technology Research Center, The R&D Center of Drug for Renal Diseases, Consun Pharmaceutical Group, Guangzhou, 510530, China.
*Email: [email protected]
ABSTRACT
Stroke is a kind of sudden onset of cerebral circulatory disorders with transient or permanent symptoms and signs of brain dysfunction clinically, it has a high incidence rate and a high mortality rate and is one of the severe cerebrovascular diseases that threaten human life and disability seriously and bring the heavy economic burden to patients and their families, there was no ideal treatment for it. Mesenchymal stem cells (MSCs) are a type of primitive undifferentiated cells with multi-directional differentiation potential and self-replication ability, they have the characteristic of convenient source and can differentiate into various types of somatic cells including nerve cells, cardiomyocytes, and osteoblasts and secrete various growth factors including brain derived neurotrophic factor, nerve growth factor, and epidermal growth factor, demonstrating the enormous application potential in many kinds of diseases including stroke. In this review, we summarized the basic characteristics and sources of MSCs, recent research progression of preclinical application and clinical application of MSCs in stroke, and the application limitations and the prospect were also discussed, hope our review may provide some useful clues for the related researchers.
Key words: MSCs, Stroke, Preclinic application, Clinic application
INTRODUCTION
It is reported that stroke has been becoming the second leading cause of death and the third leading cause of disability in the world [1]. The number of stroke patients has been increasing significantly year by year in recent ten years, because of the characteristics of high incidence rate, high recurrence rate, high disability rate, and high mortality, almost 70-85% of stroke patients experience varying degrees of loss of life and work abilities, bringing significant economic burden for families and society [2-4]. Many kinds of risk factors could result in stroke including hypertension [5, 6], diabetes mellitus [7], high fasting blood glucose [8, 9], smoking [10, 11], and drinking [12, 13], these risk factors pose significant obstacles to the prevention and treatment of stroke. How to effectively treat and alleviate the symptoms of stroke patients is becoming a global problem in the world.
Stem cells are a kind of special cells with self-renewal ability and multi-directional differentiation potential [14], they can be divided into three types including totipotent stem cells, pluripotent stem cells, and unipotent stem cells according to the developmental potential of stem cells [15, 16]. Multiple studies have demonstrated that MSCs could differentiate into different cell types including osteoblasts [17, 18], chondrocytes [19, 20], and nerve cells [21, 22] under specific conditions; MSCs could also express, synthesize, and secrete many kinds of bioactive molecules including growth factors, cytokines, signal peptides and exosomes which regulating play the important role in cell metabolism, immunity, differentiation, and proliferation in the body [23, 34]; and they also have the characteristic of advantageous distribution towards the site of injury [25, 26], those advantages of MSCs exhibit the enormous application potential in regenerative medicine. Moreover, many studies have demonstrated that MSCs also exhibit significant advantages in alleviating and treating stroke. For example, Smith et al. reported that hematopoietic stem cells could reduce infarct volume, mortality rate, and microglial activation by regulating metallothionein-1 in ischemia-reperfusion injury mice model [27]; Jiao-Jiao Peng et al. demonstrated that repetitive transcranial magnetic stimulation could promote the embryonic stem cells-derived human neural stem cells to differentiate into neuron-like cells and to accelerate functional recovery in middle cerebral artery occlusion rat model [28]; and Wang et al. found that ZL006 could improve the homing ability of neural stem cells into the ischemia-injured site and accelerate the neuronal differentiation in focal cerebral ischemic male rat [29]. In this review, we will introduce the characteristics and sources of MSCs, summarize the recent research progression of MSCs application in stroke, and the application limitations and the prospect of MSCs were also discussed, hope our review may provide some clues for the related researchers (Figure 1).
|
|
|

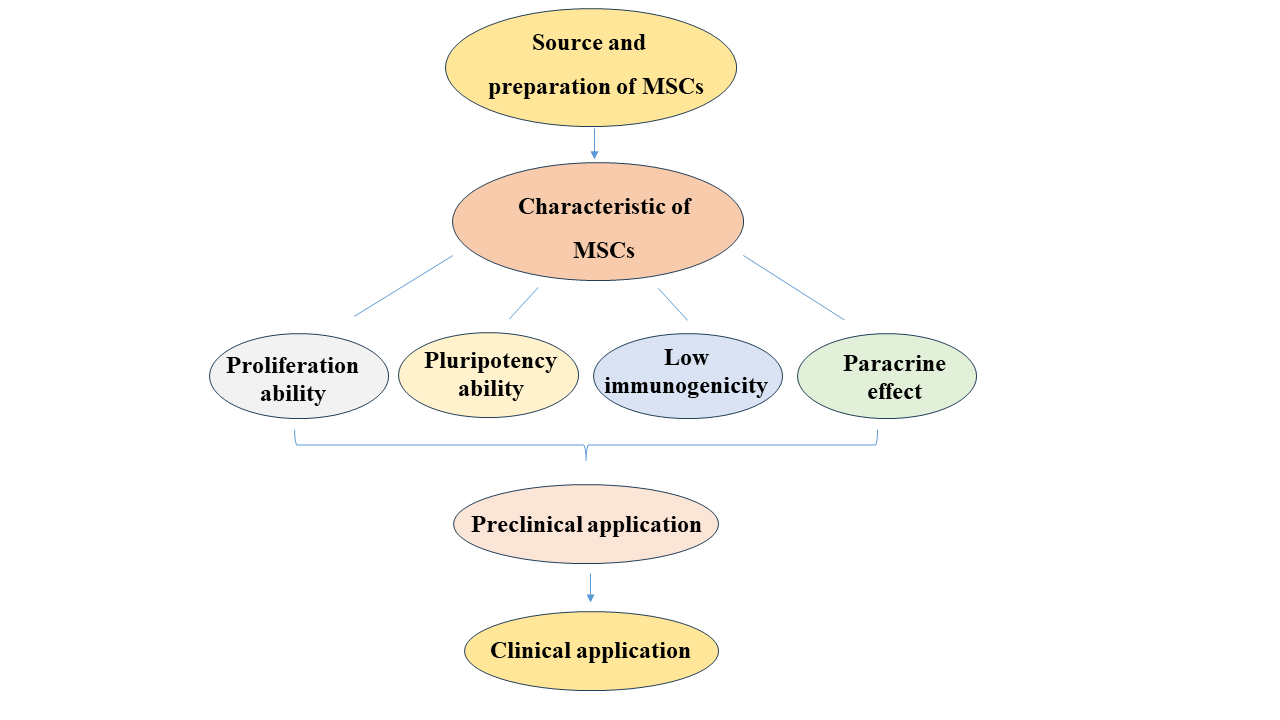

Figure 1. Graphical abstract of the review article |
Characteristics and source of MSCs
Source and preparation of MSCs
MSCs are a kind of pluripotent adult stem cells with self-renewal ability derived from the mesoderm, which could differentiate into various cell types; MSCs distributed in connective tissue and interstitium of organs including adipose tissue, bone marrow, umbilical cord, dental pulp, placenta, amniotic fluid, muscle tissue, and thymus tissue [30-32]. The preparation of MSCs is relatively simple and diverse, for example, the isolation methods of bone marrow MSCs include a conventional tissue-adherent method, bone tissue digestion method, density gradient centrifugation method, immunomagnetic bead sorting method, and flow cytometry separation method [33]; the isolation methods of umbilical cord MSCs and adipose-derived stem cells include tissue block adhesion method [34], enzyme digestion method [35], adsorption column method [36] and direct centrifugation method [37]. Those different isolation methods of different kinds of MSCs have their advantages and disadvantages and could be selected according to practical requirements. We have summarized the advantages and disadvantages of the common isolation methods in Table 1.
Table 1. The advantages and disadvantages of the common isolation methods
|
Isolation method |
Advantages |
Disadvantages |
|
Adherent screening method |
simple operation, time-saving, less pollution |
low cell purity |
|
Density gradient centrifugation method |
high quality and higher purity |
strict and complex operations, low cell activity |
|
Tissue digestion method |
simple operation, low cost |
collagenase could affect the cell activity and proliferation ability |
|
The immunomagnetic bead sorting method |
simple and efficient, and high purity |
magnetic separator required, high cost, complex operations |
|
Flow cytometry separation method |
high purity |
complex operations, high cost and time-consuming |
Proliferation ability of MSCs
MSCs have the advantage of being capable of large-scale amplification and a strong proliferation ability in vitro. In theory, MSCs have high physiological activity and could proliferate infinitely. Some evidence suggested that MSCs could still maintain pluripotency and immunogenicity after many passages. Qinjun Zhao et al. compared the biological properties of human umbilical cord MSCs at P3, P6 and P15, found that human umbilical cord MSCs at P3, P6 and P15 had the higher consistency in morphology, expression of biomarkers and cytokines [38]; Urszula Kozlowska et al. compared the biological activity of bone marrow MSCs, adipose tissue-derived MSCs, skeletal muscles-derived MSCs and skin MSCs which cultured for ten weeks, found that four different types of long term cultured MSCs exhibited the basic relatively consistent phenotypes of MSCs, especially, long term cultured bone marrow MSCs and long term cultured adipose tissue-derived MSCs could keep the expression of Sox2 and Oct4 and multilineage differentiation ability [39]; Shannon S Connard et al. compared the immunomodulatory properties changes of P3 equine bone marrow MSCs, P6 equine bone marrow MSCs, and P9 equine bone marrow MSCs, found that there were no significant differences in promoting cytokine synthesis and expression of nterleukin-6 (IL-6) and monocyte chemoattractant protein-1 (MCP-1) in three different passage of bone marrow MSCs [40]; Mengbo Yang et al. demonstrated that P2 human umbilical cord MSCs and P8 umbilical cord MSCs had the same cell morphology and same expression of surface markers [41]; Mahnaz Babaahmadi et al. provided the evidences that bone marrow MSCs with long-term passages and the early passages of WJ-MSCs and BM-hMSCs had the similar therapeutic effects in collagen-induced arthritis rat [42], reflecting the same application advantages of long-term cultured MSCs and short-term cultured MSCs with a large amount of amplification.
Pluripotency ability of MSCs
Evidence demonstrated that MSCs could differentiate into three different germinal layers including neural cells [43], cardiomyocytes [44], kidney cells [45], and skin cells [46]; MSCs could also express the pluripotency markers NANOG, OCT-4, and SSEA-4; MSCs exhibit the excellent pluripotency ability. Aleksandra Musiał-Wysocka et al. isolated the MSCs from Wharton's jelly of the umbilical cord and confirmed that expression of NANOG, OCT-4, and SSEA-4 in Wharton's jelly of umbilical cord-derived MSCs was lower than in iPSCs, and hypoxia could improve the expression of NANOG, OCT-4, and SSEA-4 and increase its pluripotency [47]. Interestingly, the pluripotency ability of MSCs could be enhanced through various physical and chemical pathways. For example, Ana Borojević et al. reported that Vitamin D3 could increase the expression of pluripotency markers in human Bone Marrow MSCs through SIRT1 signaling [48]; Mekhemar et al. found that Thymoquinone from Nigella sativa could improve the expression of TLR3 and NANOG in Gingival MSCs [49]; Gitika Thakur et al. demonstrated that the special 3D culture could provide the cell microenvironments to enhance the expression of pluripotency markers in Wharton's jelly MSCs [50]. Therefore, MSCs exhibit enormous clinical application potential including neurological diseases and kidney diseases because of the pluripotent characteristics of MSCs.
Low immunogenicity of MSCs
Low immunogenicity is another important characteristic of MSCs for clinical application. It is reported that MSCs do not express major histocompatibility complex class II (MHC-II) molecules, MSCs could exhibit low immunogenicity in their immune characteristics and do not actively release their identity information when entering the host; and MSCs could evade the host's immune response through immune privilege during their participation in the immune process [51-53].
Paracrine effect of MSCs
MSCs could express, synthesize, and secrete many kinds of bioactive molecules including growth factors, cytokines, transcription factors, and signal peptides to regulate metabolism, cell differentiation, proliferation, migration, and apoptosis to balance the internal homeostasis of the body, the paracrine effect of MSCs plays the important role in tissue regeneration and organ repair [54, 55].
The preclinical application of MSCs in stroke
Due to the rapid development of stem cell technology, MSCs have been widely used and proven to alleviate and treat stroke in many kinds of animal models. The preclinical application of MSCs is mainly based on the different characteristics of MSCs including proliferation and pluripotency ability, low immunogenicity, and paracrine effect acting on animal models to explore their therapeutic effects and underlying mechanisms. For example, Fenjun Jiang et al. obtained a kind of neurotrophic factor-secreting MSCs from the bone marrow MSCs, found that this kind of neurotrophic factor-secreting MSCs could secrete highly level of neurotrophic factors including glial-derived neurotrophic factor (GDNF) and brain-derived neurotrophic factor (BDNF) compared with the bone marrow MSCs, and could reduce the infarct volume and increase the functional recovery in ischemic stroke rats [56]; Oh Young Bang et al. compared the effects of normal MSCs and CXCR4 overexpression of MSCs on rat stroke model, found that the migration of CXCR4 overexpression of MSCs was better than normal MSCs, and CXCR4 overexpression of MSCs could promote the behavioral recovery significantly compared with normal MSCs [57]; and Sanghun Lee et al. demonstrated that CCL2-overexpressing human umbilical cord MSCs could improve the functional recovery and decrease the stroke volume in middle cerebral arterial occlusion rats compared with normal human umbilical cord MSCs [58]. We summarized the recent preclinical application of MSCs in stroke in Table 1. In summary, cell resources mainly include humans, mice, and rats; stem cell type includes neural stem cells, adipose-derived MSCs, bone marrow MSCs, umbilical cord blood MSCs, and hair follicle stem cells; the main stroke modeling method is middle cerebral artery occlusion; the administration dosage focus on 1.0×105 cells, the details have been shown in Table 2.
Table 2. The recent preclinical application of MSCs in stroke
|
Cell resource |
Stem cell type |
Model |
Dosage |
Administration |
Therapeutic effect |
Mechanism |
References |
|
Human |
Middle cerebral |
5×105/20uL |
Stereotactic |
reduced brain tissue atrophy and memory functional loss |
neuroprotective and |
[59] |
|
|
Mouse |
middle cerebral artery occlusion mice |
2×106/20uL |
intraperitoneal injection |
infarct size was reduced, and neurological recovery was increased |
EVs containing miR‐25‐3p regulate autophagy |
[60] |
|
|
Human |
BMMSCs |
distal middle cerebral artery occlusion mice |
1×106 |
intraperitoneal injection |
increased peri-infarct blood flow and vascular density and reduced infarct volume |
upregulation of Rabep2 |
[61] |
|
Mouse |
NSCs |
transient middle cerebral artery occlusion mice |
/ |
intraperitoneal injection |
reduction in neurological deficit along with reduced infarct area |
Jak2/Stat3 pathway |
[62] |
|
Rat |
BMMSCs |
middle cerebral artery occlusion rat |
5×106 cells/kg |
intraperitoneal injection |
reductions in infarct size and inhibition of microglial activation |
upregulated neuron‐glia antigen 2 |
[63] |
|
Rat |
MSCs |
middle cerebral artery occlusion rat |
/ |
intraperitoneal injection |
improving the mitochondrial activity and functional recovery |
mitochondria transfer |
[64] |
|
Human |
BMMSCs |
transient middle cerebral artery occlusion mice |
1×106/50uL |
intraperitoneal injection |
improving functional recovery |
activation of PI3K/Akt pathway |
[65] |
|
Human |
NSCs |
middle cerebral artery occlusion (MCAO) and oxygen-glucose deprivation rat |
/ |
intraperitoneal injection |
improving the spatial memory performance |
promoting β-catenin nuclear translocation |
[66] |
|
Mouse |
MSCs |
permanent focal cerebral ischemia mice |
5×105 |
intraperitoneal injections |
improving functional recovery |
gap junction-mediated cell-cell interaction |
[67] |
|
Human |
BMMSCs |
1 hour middle cerebral artery occlusion rat |
3×105 cell/9μL |
intraperitoneal injections |
brain-to-periphery migration |
lymphatic and inflammation pathways |
[68] |
|
Mouse |
NSCs |
middle cerebral artery occlusion mouse |
1×105cell/μL |
intraperitoneal injection |
neurological function improvement |
inhibited p53-mediated Proapoptotic Pathway |
[69] |
|
Mouse |
NSCs |
injecting endothelin in the right pons |
0.5 × 106/μL |
intraperitoneal injection |
improving neurological function |
overexpressed BDNF and Dlx2 |
[70] |
|
Human |
UCBMSCs |
Middle cerebral Artery Occlusion rat |
5×105 |
intraperitoneal injection |
improve neuroprotection, decrease inflammation, and increase angiogenesis |
release cytokines and decrease inflammation |
[71] |
|
Human |
UCBMSCs |
Middle cerebral Artery Occlusion rat |
2.5×105 |
intraperitoneal injection |
improved the recovery of sensory and motor function |
/ |
[72] |
|
Mouse |
BMMSCs |
bilateral common carotid artery occlusion mouse |
2 × 106 |
intraperitoneal injection |
improved neuroprotective property |
attenuating the host cell response |
[73] |
|
Rat |
Middle cerebral Artery Occlusion rat |
1 × 106 cells/mL |
intraperitoneal injection |
reduced the infarct volume and promoted neurological recovery |
/ |
[74] |
Abbreviations: MSCs: Mesenchymal stem cells; NSCs: Neural stem cells; ASCs: Adipose-derived MSCs; BMMSCs: Bone marrow mesenchymal stem cells; UCB-MSCs: Umbilical cord blood mesenchymal stem cells; HFSCs: Hair follicle stem cells.
The clinical application of MSCs in stroke
It is essential to conduct systematic studies on patients or healthy volunteers to confirm the efficacy and safety of the investigational drug for final validation. Similarly, to verify the therapeutic effect of MSCs in stroke, numerous clinical trials have been conducted around the world in the past ten years. The results demonstrated that there were 16 clinic trials (phase I stage or phase II stage) of MSCs application in stroke had been reported from 2014-2023; stem cell type mainly included neural stem cells (5 clinic trials), bone marrow MSCs (4 clinic trials) and adipose MSCs (3 clinic trials); the dosage of MSCs were variant from 0.5×106 to 3.0×108 cells; intraperitoneal injection was the main administration; injection period was from 3 months to 30 months; there were 6 clinic trials reported that intraperitoneal injection of MSCs had the adverse effect in patients, the ratio was 37.5% (6/16); the main countries for conducting clinical trials were China (5 clinic trials), Japan (2 clinic trials) and Spain (2 clinic trials). The details are summarized in Table 3.
Table 3. The clinical application of MSCs in stroke from 2014-2023
|
Clinic trial |
Stem cell type |
Stroke type |
Dosage |
Administration |
Period |
Adverse |
Country |
References |
|
open-label |
BMMSCs |
perinatal arterial |
45-50×106 |
intraperitoneal |
3 months |
a mild transient fever of 38°C without the need for clinical intervention |
Netherlands |
[75] |
|
prospective randomized controlled trial |
MSCs |
chronic major stroke |
5×106 cells/mL |
infused via the antecubital vein |
3 months |
unknown |
South Korea |
[76] |
|
a prospective, multicentre, single-arm, open-label study |
NSCs |
ischaemic stroke |
2×106 cells |
stereotaxic injection |
6-12 months |
no cell-related adverse events |
United Kingdom |
[77] |
|
single-center, open-label, randomized controlled trials |
BMMSCs |
moderate-severe ischemic carotid stroke |
unknown |
intravenous |
6-24 months |
yes |
France |
[78] |
|
randomized, double-blind, placebo-controlled, multicentre, phase 1/2 clinical trial |
DPSCs s |
acute ischaemic stroke |
1-3×108 |
intravenous administration |
30 months |
unknown |
Japan |
[79] |
|
Phase I/II Study |
BMMSCs |
chronic stroke |
3.6-12.4×106 cells/kg |
Intravenous transfusion |
12 months |
15 serious adverse events including infections, vascular disorders, and pain syndromes |
USA |
[80] |
|
single-centre, randomized, double-blinded, parallel-controlled trial |
NSCs |
ischaemic stroke |
2.5×106 cells/100uL |
intranasal administration |
12 months |
unknown |
China |
[81] |
|
a phase IIb, multicentre, randomized, double-blind, placebo-controlled clinical trial |
ASCs |
ischaemic stroke |
1.0×106 cells/mL |
intranasal administration |
24 months |
unknown |
Spain |
[82] |
|
phase I open-label clinical trial |
ASCs |
chronic ischemic stroke |
1×108 |
intracerebral transplantation |
6 months |
no adverse events |
China |
[83] |
|
an open-label, single-site, dose-escalation trial |
NSCs |
chronic ischaemic stroke |
2.0-20×106 cells |
stereotactic ipsilateral putamen injection |
29 months |
no adverse events |
USA |
[84] |
|
a Phase I/II randomized, placebo-controlled trial |
allogeneic MSCs |
Chronic Stroke |
0.5-1.5×106 cells/kg |
intracerebral transplantation |
12 months |
15 serious adverse events |
Canada |
[85] |
|
a single-site, phase I trial |
NSCs |
ischemic stroke |
1.2-7.2×107 cells |
intracerebral microinjection |
24 months |
unknown |
China |
[86] |
|
a Phase I/II randomized, placebo-controlled trial |
NSCs, MSCs |
ischemic stroke |
0.5-6.0×106 cells/kg |
intravenous injection |
24 months |
low fever (<38.5°C) |
China |
[87] |
|
a Phase II single-arm, open-label trial |
autologous |
stroke |
0.5-2.0×108 cells |
intravenous injection |
6 months |
unknown |
Japan |
[88] |
|
A phase II, randomized, double-blind, placebo-controlled, single-center, pilot clinical trial |
ASCs |
acute ischemic stroke |
1.0×106 cells/kg |
intravenous injection |
24 months |
1 case of serious adverse event was found |
Spain |
[89] |
|
a randomized controlled observer-blinded trial |
bone marrow |
severe ischemic stroke |
1.0×106 cells/kg |
intravenous injection |
12 months |
unknown |
China |
[90] |
Abbreviations: MSCs: Mesenchymal stem cells; NSCs: Neural stem cells; ASCs: Adipose-derived MSCs; BMMSCs: Bone marrow mesenchymal stem cells; UCB-MSCs: Umbilical cord blood mesenchymal stem cells; HFSCs: Hair follicle stem cells; dental pulp stem cells: DPSCs.
CONCLUSION
Stem cell therapy is becoming one of the most promising treatment methods for difficult diseases including stroke because of its convenient preparation of MSCs, excellent differentiation, renewal, and repair capabilities, and low immunogenicity. While stem cell technology is becoming increasingly mature and has good development prospects, there are still many urgent problems that need to be solved for applications of MSCs. (1) Heterogeneity of MSCs. The main manifestation is heterogeneous cell populations with unclear definitions, varying sizes and shapes, and different epigenetic imprints of cells from different tissue sources [91, 92]; how to obtain a homogeneous population of MSCs with the same epigenetic imprints is an urgent issue to be solved. Isolation and seek for suitable subpopulations of MSCs seems to be an ideal method. For example, Hongwei Chen et al. identified the BAMBIhighMFGE8high C1 subgroup by scRNA-seq technology, this kind of special umbilical cord MSCs had a unique phenotype and distinct transcriptomic profile, which exhibited excellent clinic application perspectives [93]; and Penghong Chen et al. identified four different types of subpopulations of Wharton's jelly MSCs including proliferative Wharton's jelly MSCs, niche-supporting Wharton's jelly MSCs, metabolism-related Wharton's jelly MSCs and biofunctional-type Wharton's jelly MSCs by single cell and spatial transcriptome sequencing technology; Subsequently, they isolated a special S100A9+CD29+ CD142+ subpopulation from biofunctional-type MSCs, found that this kind of S100A9+CD29+CD142+subpopulation had the better effect on wound healing that traditional Wharton's jelly MSCs [94]. This evidence may provide a new solution method for the heterogeneity of MSCs. (2) The standardization of methods for stem cell isolation, amplification, and differentiation. There are many kinds of MSCs including bone marrow MSCs, umbilical cord MSCs, adipose MSCs, and hematopoietic stem cells, and has been reported, that there were many kinds of isolation methods and culture methods for MSCs, the inconsistency and non-standardization of isolation methods and culture methods resulted in the huge barriers of MSCs applications. Establishing standardized quality control standards for MSCs may be one of the ways to solve the problem. (3) further verification for the safety and effectiveness of MSC therapy is still needed. At present, the application of MSCs is mostly limited to animal experiments, and there is a huge gap between animal experiments and clinical trials. How to obtain more reliable clinical trial data to support the MSCs therapy is also a big barrier. (4) Establishment and implementation of MSCs policies. The policies related to MSCs directly determine whether MSCs can enter the clinical stage from animal experiments to marketing approval, improving relevant regulations can provide a basis for the clinical application of MSCs and have a targeted approach.
Anyway, with the rapid development of MSC technology and solving the above problems step by step, MSC applications in stroke will make breakthrough progress in the future.
ACKNOWLEDGMENTS : None
CONFLICT OF INTEREST : None
FINANCIAL SUPPORT : None
ETHICS STATEMENT : None
